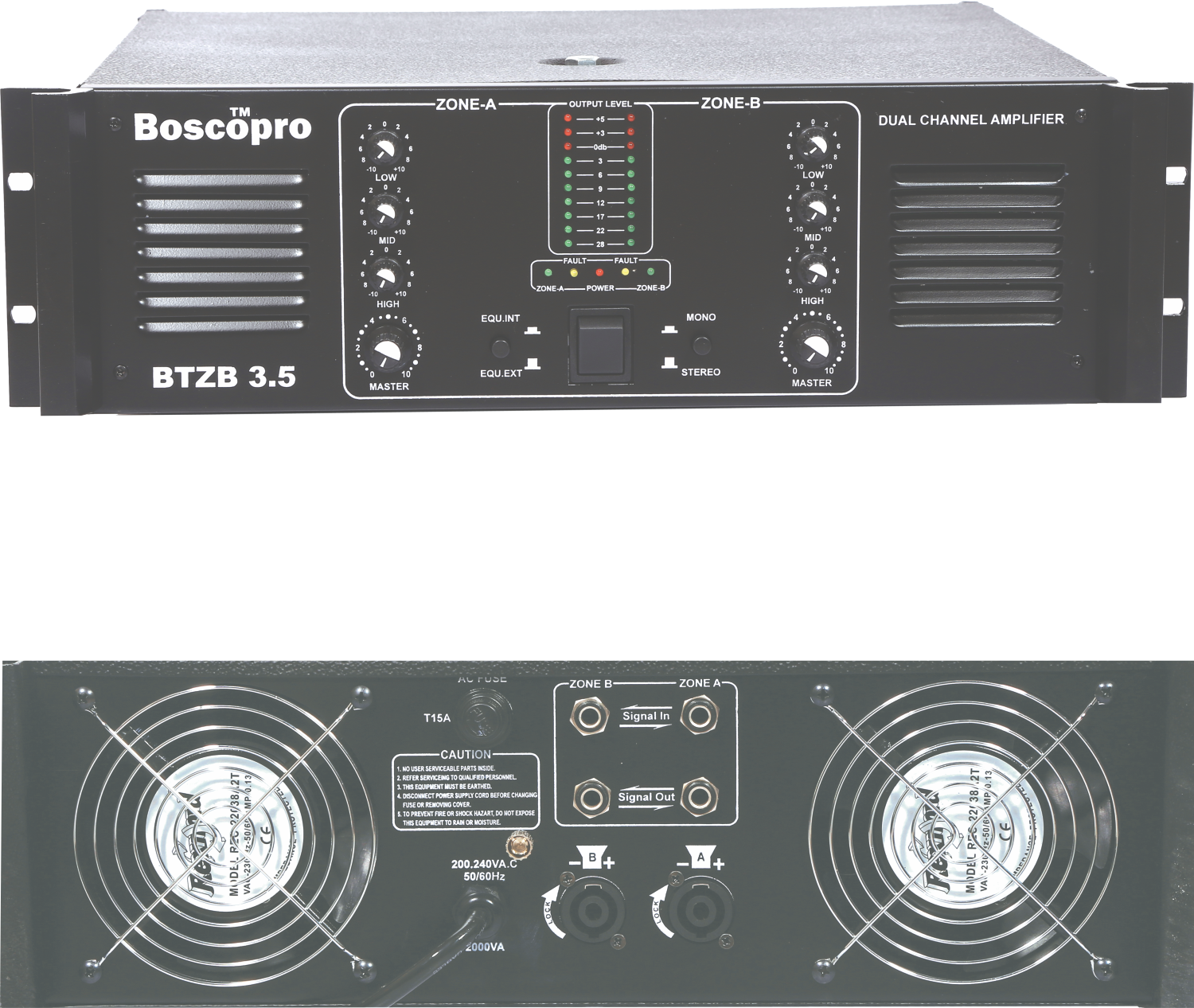

BTZB - 3.5

MODEL   BTZB 3.5 (2 x 1750 W)
Power RMS (Per Channel)
Stereo @ THD 1%
2 Ohm    1750 W Per Channel
4 Ohm    1250 W Per Channel
8 Ohm    650 W Per Channel
Minimum Load Impedance    2 Ohm
Frequency Response    20 Hz-20 Khz (+/-0.5dB)
S/N Noise Ratio    85 dB Unweighted
Input Sensitivity Full Rated Power    200mv, 1.0 V
Damping Factor 1khz & Below    700
Protection Device    DC Overload, Short Circuit, RF Protection
Input Connector (Per Channel)    Balanced XLR, Jack 6.3
Output Connector (Per Channel)     Speakon
Cooling    Twin Tunnel Cooling Fan & Heatsinks
Indicators    Power ON, Signal, Limiter Protect
Supply Voltage    AC 240 V / 50 Hz
Weight   31 Kg
