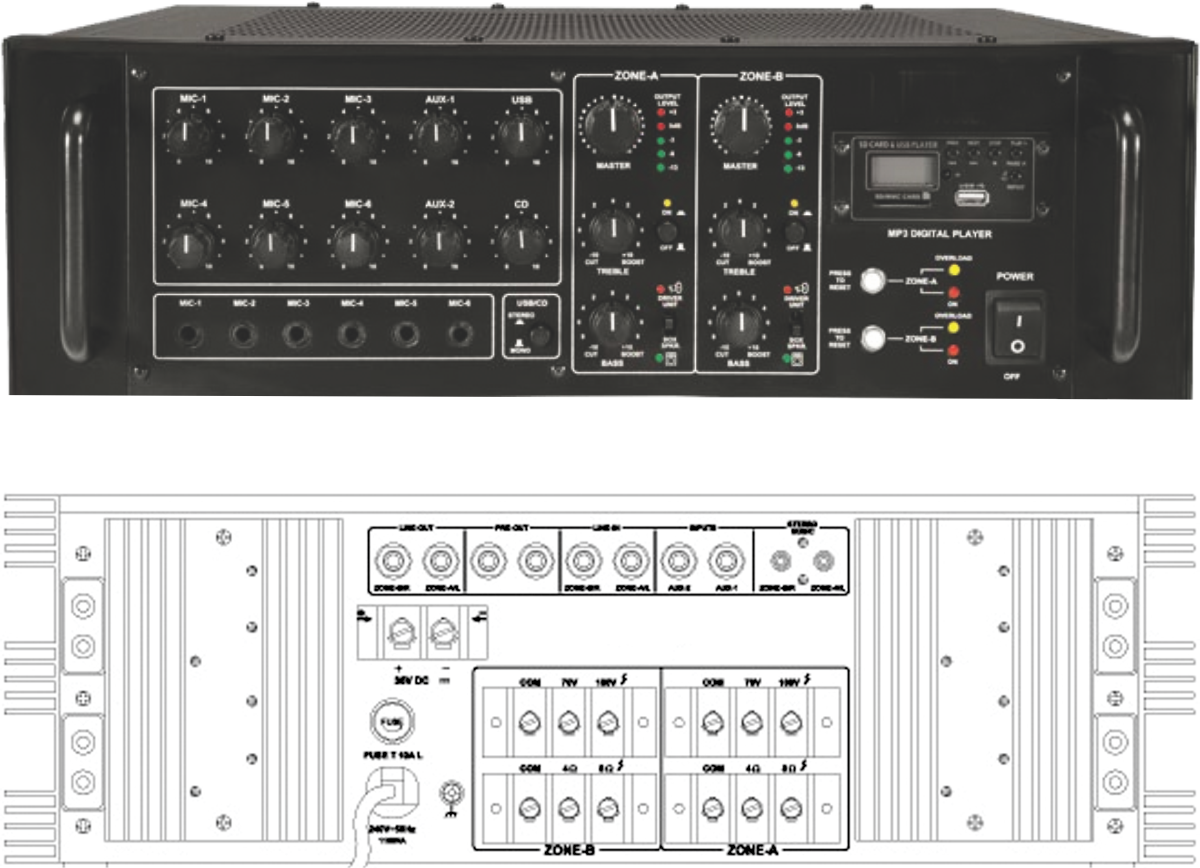

BBTZA-7000


MODEL     BTZA 7000
Power Output     500W+500W Max., 350W+350W RMS at 10% THD
      300W+300W RMS at 5% THD, 280W+280W RMS at 2% THD
Output Regulation   ≤ 2 dB, no load to full load at 1 kHz
Input Channels     Mono 6xMic. 0.6m V/4.7kΩ, 2xAux 100m V/470kΩ
      Stereo L/R 200m V/100kΩ, Line L/R 1V/50kΩ
Frequency Response     50-15000Hz ± 3dB
S/N Ratio     60dB
Tone Control     Bass ± 10dB at 100 Hz, Treble ± 10dB at 10KHz
Outputs     Preamp 200m V/600Ω, Line 1V/1kΩ
Speaker Output     4Ω, 8Ω 70V & 100V for each zone
Power Supply     AC 220-240 V  50/60 Hz DC 36V (3x12V Car Battery)
Power Consumption     AC 1100VA, DC 13A
Weight     40 Kg
